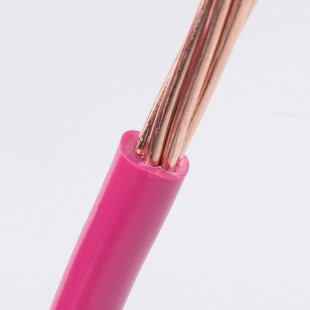

BV Solid Cable(ZR-BV、NH-BV)

BV Solid Cable(ZR-BV、NH-BV)

Features:

Scope of application: This product is suitable for AC rated voltage of 450/750V and below. It is required to have fixed installation of electrician, instrument, telecommunication equipment, power device and lighting line for flame retardant occasions. Product features: Made of high quality oxygen-free copper and environmentally friendly PVC, the performance of the product







Product Details


Application

This cable is suitable for AC rated voltage 450 / 750V and below, requiring flame occasions electrician, instrumentation, telecommunications equipment, power equipment and lighting circuit fixed laying.



Cables Features

1. Using high quality oxygen-free copper and environmental PVC for manufacturing, the performance indicators are in line with national standard: GB/T5023.3—2008/IEC60227—3:1997.
2. Acid and alkali resistance, oil resistance, moistureproofmouldproof.
3. There are types: ordinary cable, flame-retardant cable, fire-resistant cable.
Ordinary cable: For distribution circuits of the residential, commercial construction and industry.(BV)
Flame-retardant cable: for preventing the spread of secondary fire.(ZR-BV、ZA-BV、ZB-BV、ZC-BV)
Fire-resistant cable: For firefighting system.(NH-BV)

Full name of BV Cable is Copper conductor PVC insulated wire , namely general purpose single-core hard conductor non-sheathed cable , which is an ordinary insulated wire used in our daily life, such as ordinary insulated wire, home cable, which is the most common type. Resistant to acids , oil, moisture , mold and so on.

According to sectional area of conductor, BV wire can be divided into three types: 01, 05, 07, all of these are with different features.


BV Category

Model

Scientific Name

Insulation Material

Introduction

Nominal Voltage

Usages

60227IEC01(BV)

Copper conductor PVC insulated wire

PVC

General purpose: single-core hard conductor cable non- sheath

450/750V

Power equipment, electrical appliances, instruments and telecom equipment

60227IEC05(BV)

Internal wiring of conductor temperature is 70 ℃ single-core solid conductor sheathed cable

300/500V

60227IEC07(BV—90)

Internal wiring of conductor temperature is 90 ℃ single-core solid conductor sheathed cable

300/500V



According to different performances, BV cables can be classified as insulation cable, flame-retardant cable, fire-resistant cable.


BV Category

Model

Scientific Name

Insulation Material

Introduction

Nominal Voltage

Usages

60227IEC01(BV)

Copper conductor PVC insulated wire

PVC

General purpose: single-core hard conductor cable non- sheath

450/750V

Power equipment, electrical appliances, instruments and telecom equipment

60227IEC05(BV)

Internal wiring of conductor temperature is 70 ℃ single-core solid conductor sheathed cable

300/500V

60227IEC07(BV—90)

Internal wiring of conductor temperature is 90 ℃ single-core solid conductor sheathed cable

300/500V
